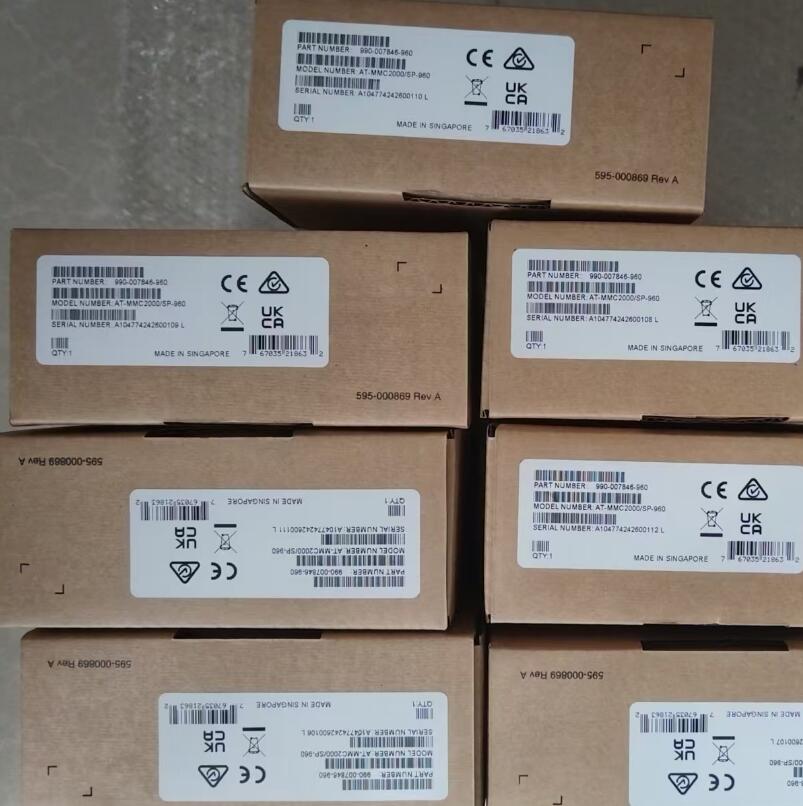

日本Allied转换器AT-MMC2000/SP
发布时间：2024-11-29
日本Allied转换器AT-MMC2000/SP
MMC2000/SP
Gigabit Ethernet to SFP Mini Media and Rate Converter
This standalone mini media and rate converter features 10/100/1000T to 100/1000x conversion. It supports SM and MM fiber in various distances based on the SFP used. It is compatible with the MMCR18 rack-mount chassis.
Add to quote
View Datasheet
| Product | Fiber Type | Fiber Optic Diameter | Optical Wavelength (nm) | Min Launch Power (dBm) | Max Launch Power (dBm) | Min Effective Power (dBm) | Typical Effective Power (dBm) | Saturation Effective Power (dBm) | Max Distance |
|---|---|---|---|---|---|---|---|---|---|
| MMC2000/T | RJ45 | - | - | - | - | - | - | - | 100 m |
| MMC200/xx | FDDI/OM1/ OM2/OM3 | 62.5/125 | 1310 | -20 | -14 | -32 | -34 | -3 | 2 km |
| MMC200LX/xx | OS2 | 9/125 | 1310 | -15 | -5 | -32 | -34 | -3 | 20 km |
| OS1 | 9/125 | 1310 | -15 | -5 | -32 | -34 | -3 | 10 km | |
| MMC2000/xx MMC2000I/SP | OM2/OM3 | 50/125 | 850 | -9.5 | -4 | -17 | -20 | -3 | 550 m |
| FDDI/OM1 | 62.5/125 | 850 | -9 | -4 | -17 | -20 | -3 | 220 m | |
| MMC2000LX/xx | OS2 | 9/125 | 1310 | -10 | -1 | -22 | -24 | -1 | 20 km |
| OS1 | 9/125 | 1310 | -10 | -1 | -22 | -24 | -1 | 10 km |
