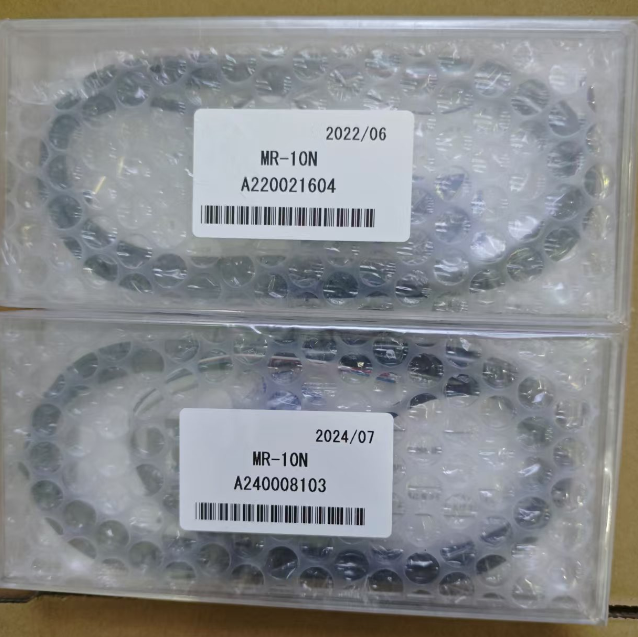

日本SHOWA昭和传感器MR-10N/MR-5N/MR-20N
日本SHOWA昭和传感器MR-10N/MR-5N/MR-20N
MR
Features Button type load cell with a wider loading area (10 mm dia.). Most suitable for the measurement of finger pressure sensibility. Low capacities (5N to 100N). Low cost. Model and Capacity / Dimension / etc. (unit : mm) * The weight indicated in this data sheet does not include the weight of cables.

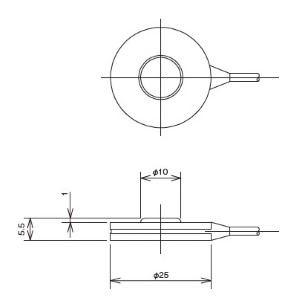

Appearance Dimensions
Model Capacity Natural frequency Weight MR-5N 5 N 1.6 kHz 10 g MR-10N 10 N 2.5 kHz 10 g MR-20N 20 N 4.1 kHz 10 g MR-50N 50 N 6.6 kHz 10 g MR-100N 100 N 9.5 kHz 10 g Specifications
Safe Overload 120 %R.C. Rated Output 1 mV/V±20 % Nonlinearity 1 %R.O. Hysteresis 1 %R.O. Repeatability 0.5 %R.O. Excitation Voltage 2 V (or less) Safe Excitation Voltage 3 V Input Rsistance 120 Ω Output Rsistance 120 Ω Compensated Temp.Range 20～60 ℃ Safe Temp.Range 0～60 ℃ Temp.Effect on Zero 0.03 %R.O./℃ Temp.Effect on Output 0.03 %/℃ Cable Φ3mm-4wire shielded cable, length : 2ｍ
