日本HOZAN宝山真空吸笔P-831
发布时间：2025-05-28

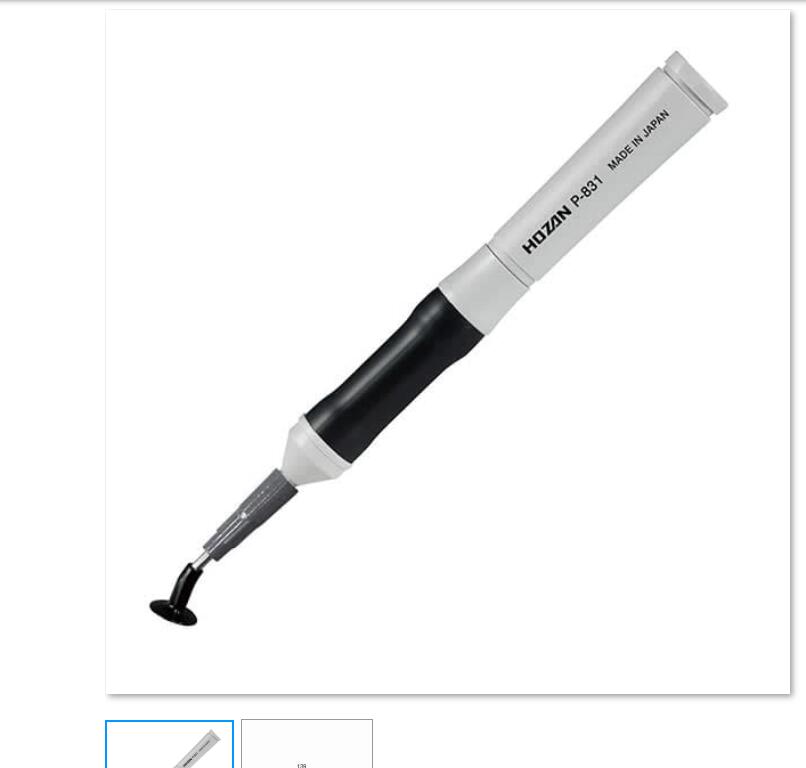

日本HOZAN宝山真空吸笔P-831
P-831
VACUUM PICK-UP TOOL
| Material | Allowable temperature ℃ | Weight g | ESD standard Ω | |
|---|---|---|---|---|
| cup and grip | body | |||
| Silicone rubber | ABS | 220 （cup） | 12 | Rg < 1 × 1012 |
■3 cup types (S,M,L), and nozzles (straight, bent).
* Can be stored in the body.
| Size | Cup dia. mmφ | Lift up g |
|---|---|---|
| S | 3.5 | 4 |
| M | 6.5 | 50 |
| L | 9.5 | 130 |
■Replacement parts
P-832-S / M
P-831-L

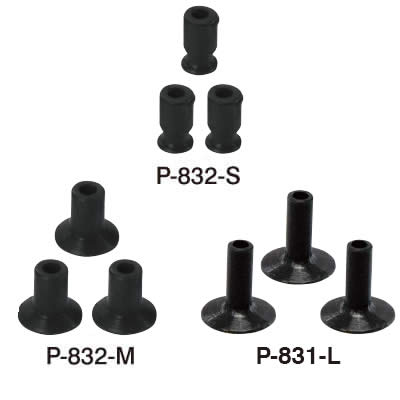

CUP
| Part no. | Size | Pad dia. mmφ | Pick-up capability ℃ | Quantity supplied |
|---|---|---|---|---|
| P-832-S | S | 3.5 | 220 | 3 pieces |
| P-832-M | M | 6.5 | ||
| P-831-L | L | 9.5 |
■Compatible models: P-830 / 831 / 835
P-831-3

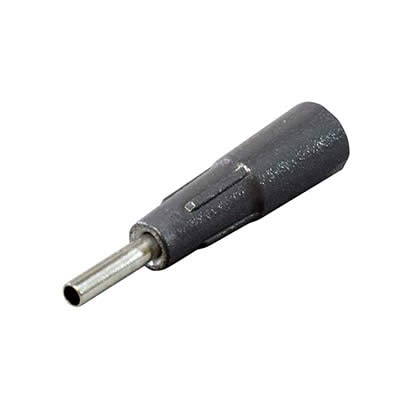

STRAIGHT NOZZLE
■Compatible models: P-830 / 831 / 835
P-831-4

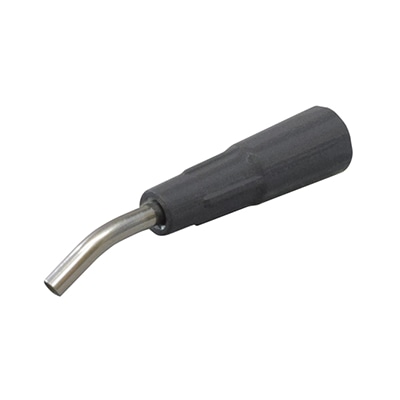

BENT NOZZLE
■Compatible models: P-830 / 831 / 835
■Quantity:1
P-831-2

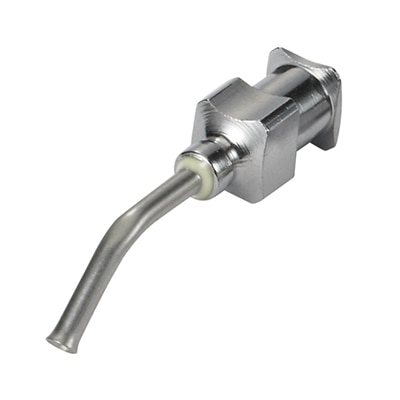

BENT NOZZLE (old model)
■Compatible models: P-830 / 831 / 835
■Quantity:1
