Pipe conn. size	INVV: R1/8–R3/8, INVV-SS: R1/4	Spray angle	INVV: 50–115ﾟ, INVV-SS: 15–115ﾟ	Mean droplet diameter	160–400 μm
Strainer	Not included	Standard pressure	0.3 MPa	Spray capacity	INVV: 0.5–5.0 ℓ/min, INVV-SS: 1.5–20.0 ℓ/min
Air consumption	-	Free passage diameter	0.3–1.6 mm

Features

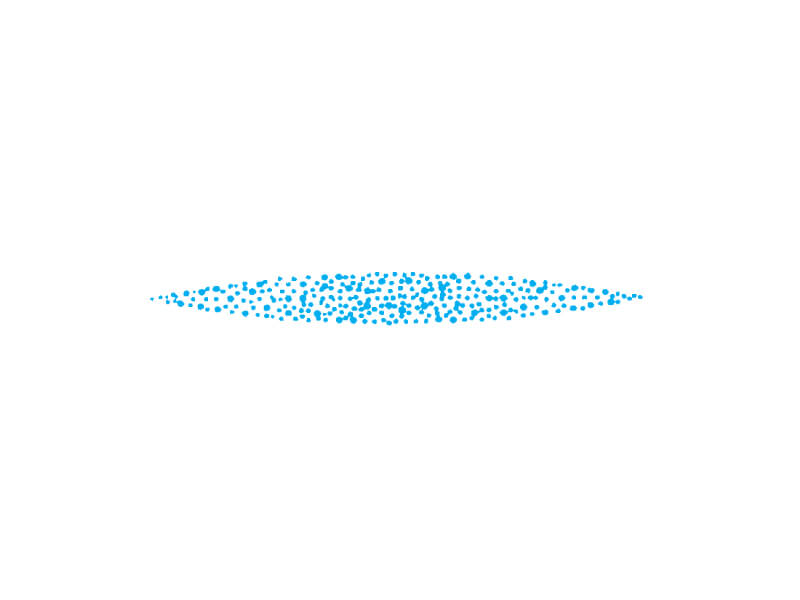

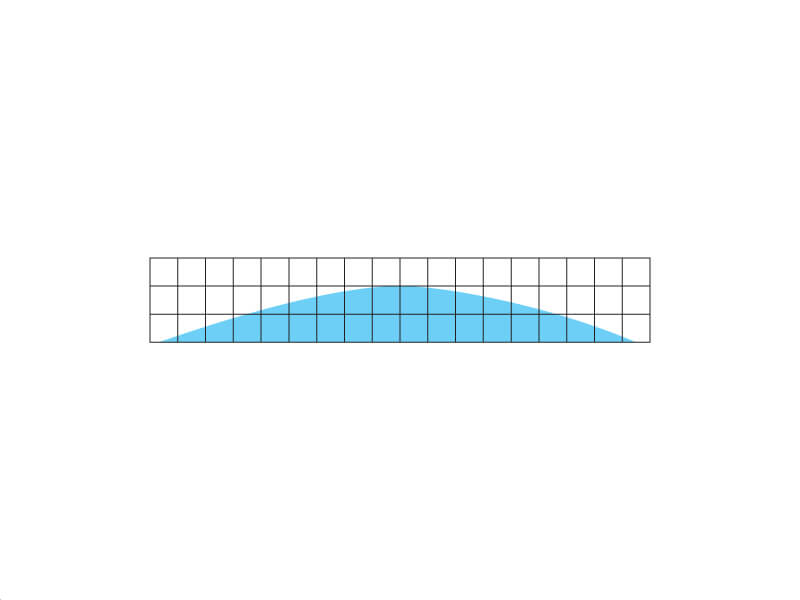

• Flat spray pattern with a mountain-shaped spray distribution having gradually tapered edges.
• Quick-detachable design helps to greatly reduce maintenance time.
• Easy mounting/dismounting with a knurled tab.
• No falling off of tip or packing when removing the nozzle part.

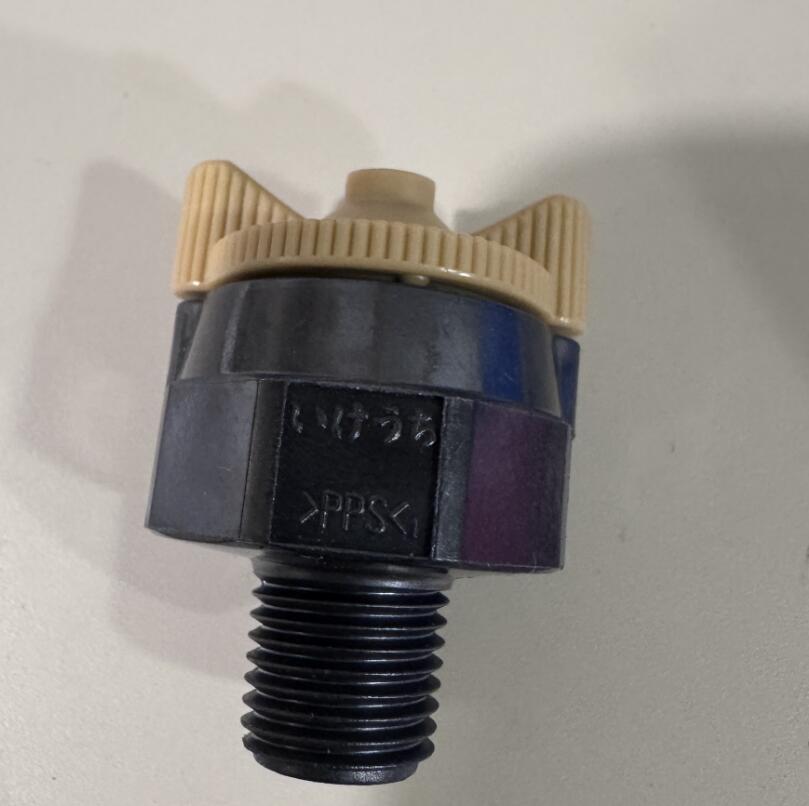

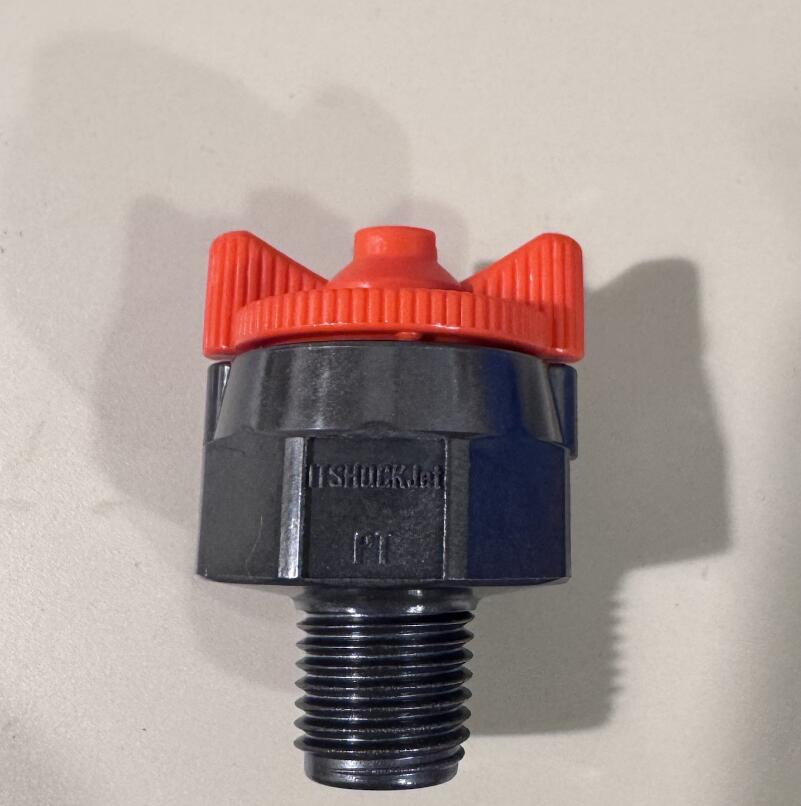

[INVV series (plastic)]
• Made of high chemical and heat resistant PP (polypropylene).

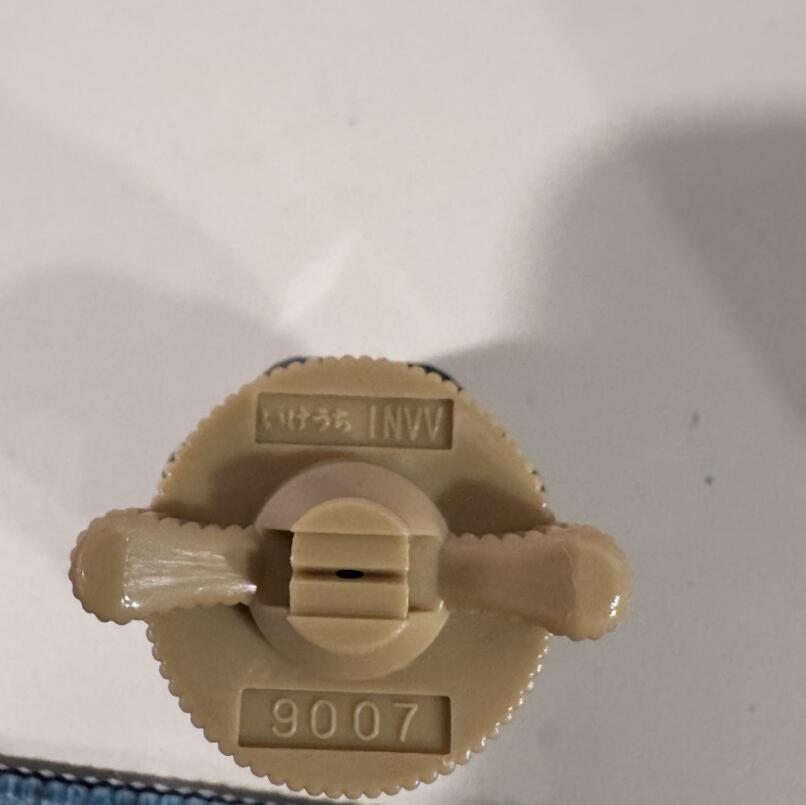

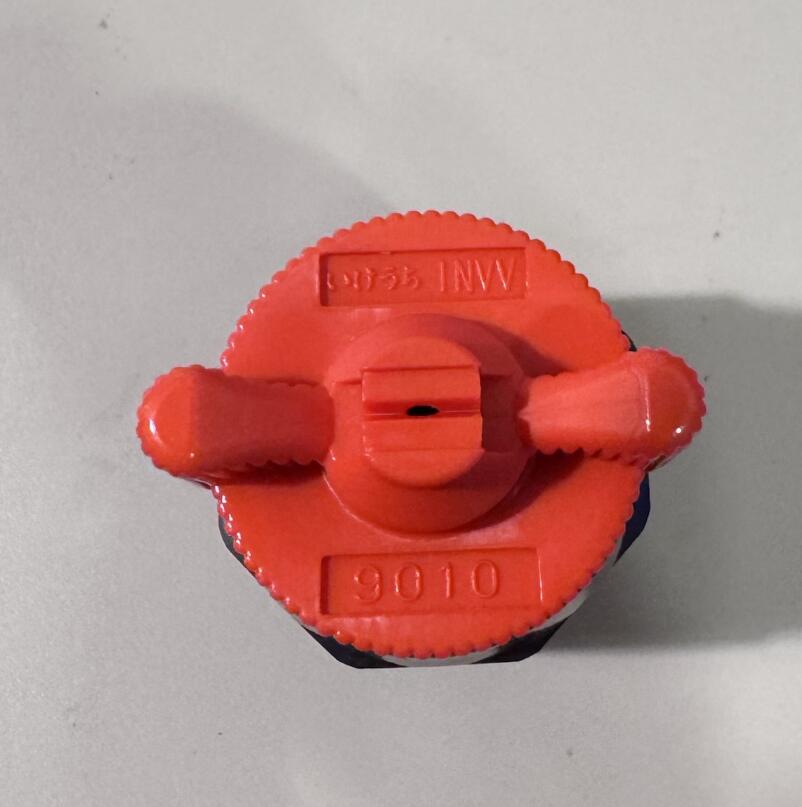

• Nozzle tips are color-coded by spray capacity for easy identification.

[INVV-SS series (metal)]
• Made of stainless steel which provides high heat resistance and durability.

Applications

[INVV series (plastic)]
• Cleaning
• Etching
• Stripping
• For the applications where precise spray alignment and/or periodic maintenance is required

[INVV-SS series (metal)]
• Cleaning: Automotives, containers, films, felts, filters, screens, bottles, crushed stones, earth and sand, metal parts, machines, steel plates and pieces
• Spraying: Oils, lubricants, glues, insecticides, herbicides
• Cooling: Tanks, roofs
• Water screen: Dust suppression, deodorization
• For the applications where precise spray alignment and/or periodic maintenance is required

Industries in which this nozzle is used

• Machinery
• Electronics
• Automotives
• Steelmaking
• Pollution control
• Paper & Pulp
• Printing
• Food
• Agriculture
• Fisheries & Livestock

Product specifications

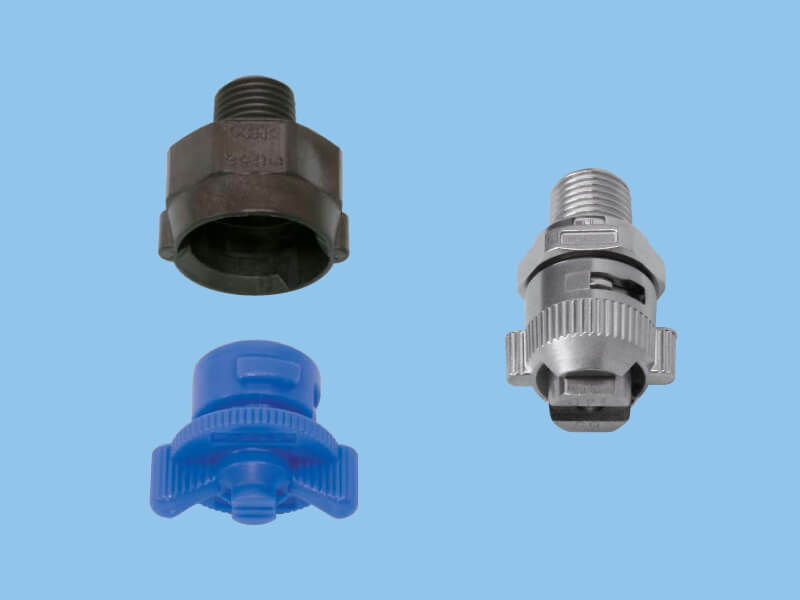

Structure	[INVV series (plastic)] • Two-piece structure comprising a nozzle (nozzle tip + packing) and adaptor. • Easy installation and removal of a nozzle just by turning 60ﾟ. [INVV-SS series (metal)] • Two-piece structure comprising a nozzle (nozzle tip + cap + packing) and adaptor.　 • Easy installation and removal of a nozzle just by turning 90ﾟ.
Material	[INVV series (plastic)] • Nozzle tip: PP (polypropylene) • Adaptor: PP or PPS (polypropylene sulfide) • Packing: FEPM [INVV-SS series (metal)] • Nozzle tip: Stainless steel 303 • Cap: Stainless steel 316L equivalent • Adaptor: Stainless steel 316L equivalent • Packing: FEPM
Mass	Plastic INVV series Pipe conn. sizeMass (g)w/PP adaptorw/ PPS adaptorR1/89.012R1/49.412R3/810.314 Metal INVV series Pipe conn. sizeMass (g）R1/457

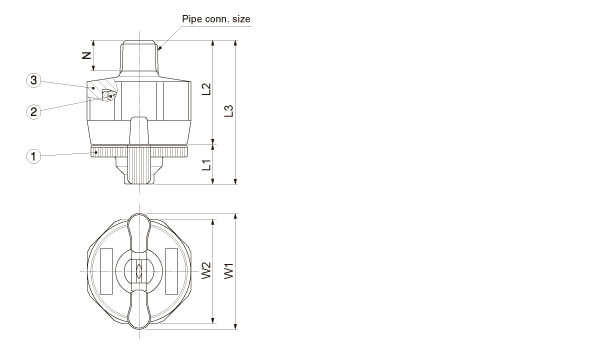

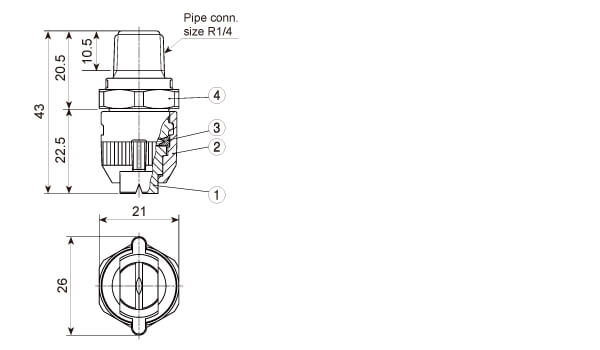

Outer dimensions	Plastic INVV series No.Components①Nozzle tip②Packing③Adaptor Pipe conn. sizeOuter dimensions (mm）L1L2L3W1W2NR1/810273730278R1/4103040302711.5R3/8103040302712 [Note] • INVV series nozzles are not compatible with the discontinued ISVV series. • Appearance and dimensions may differ slightly depending on materials and nozzle codes. • Tab line conforms with the flat spray spread direction. Metal INVV series No.Components①Nozzle tip②Cap③Packing④Adaptor [Note] • Appearance and dimensions may differ slightly depending on materials and nozzle codes. • Tab line conforms with the flat spray spread direction.
