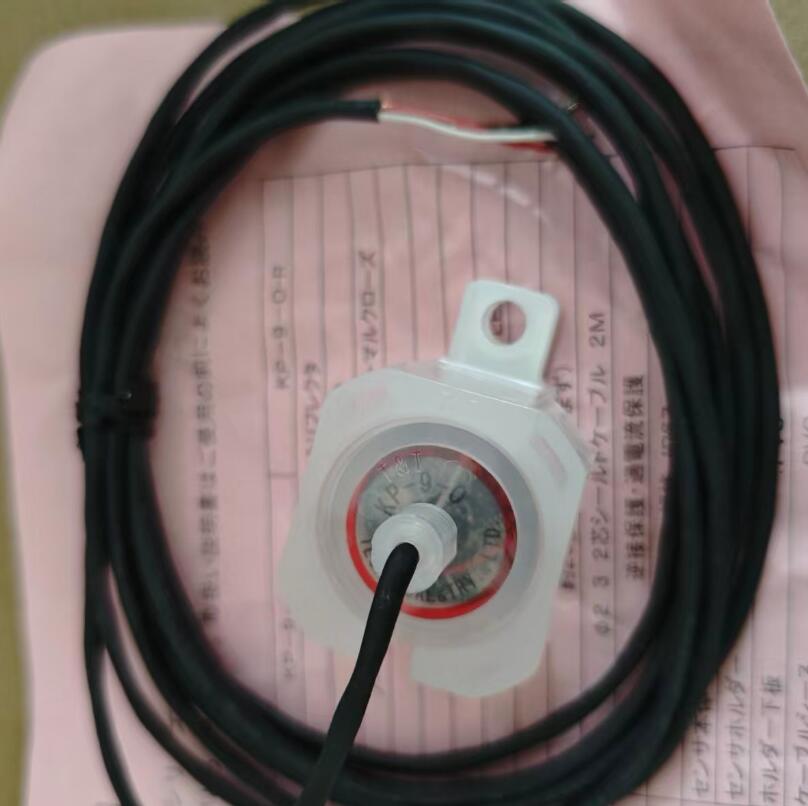

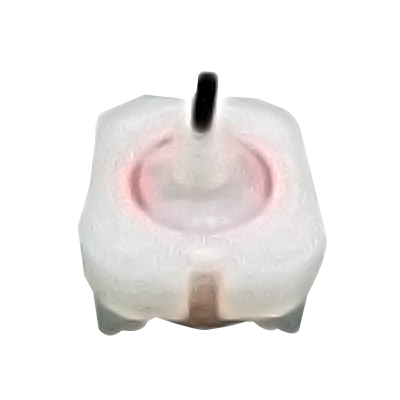

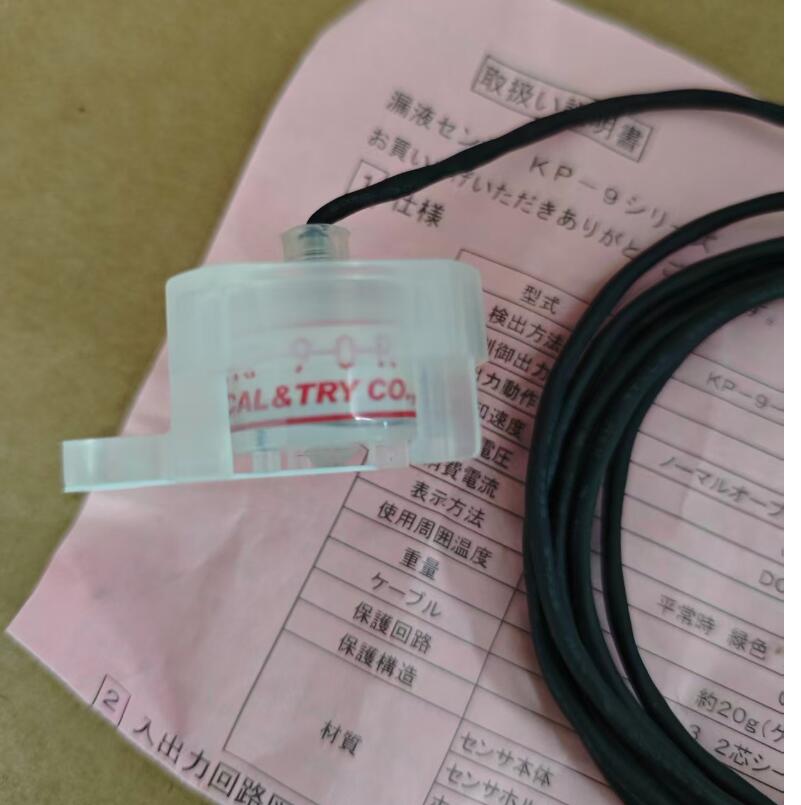

日本Technical&Try液体检知器KP-9-0-R
Leakage Sensors : KP series
Liquid detectable sensor Body material: P.P (polypropylene) Cable material: PVC (vinyl chloride) Explosion-proof specification products available! Interlock function (detachment detection function from fixed holder) can be selected! (A) Please kindly perform the checking operation when exclusive holder installed.Designation System
7→No inter-lock
9→Inter-locked
(B)
C→A type（Normal Open）
D→B type（Normal Close）
Specifications
Detecting Method Infrared Photo-reflector Detecting Output Transistor Output C type: normal Open O type: Normal Close 50mA MAX Detecting Speed 0.5～1Sec. (Pure Water) Power Supply 12V～24V Consumption Current Under 25mA Indicator LED Turns Green, Detecting LED Turns Red as normal Ambient temperature -10～60℃ Weight Approx.20g(Excluded the Cable) Material P.P(Polypropylene) Cable 2Core Shield Cable(Material PVC) Cable Color Red:Power Supply
White:Output+
Shield:GND CommonSummary measure(size) Sensor diameterφ24 Height 17.2mm
