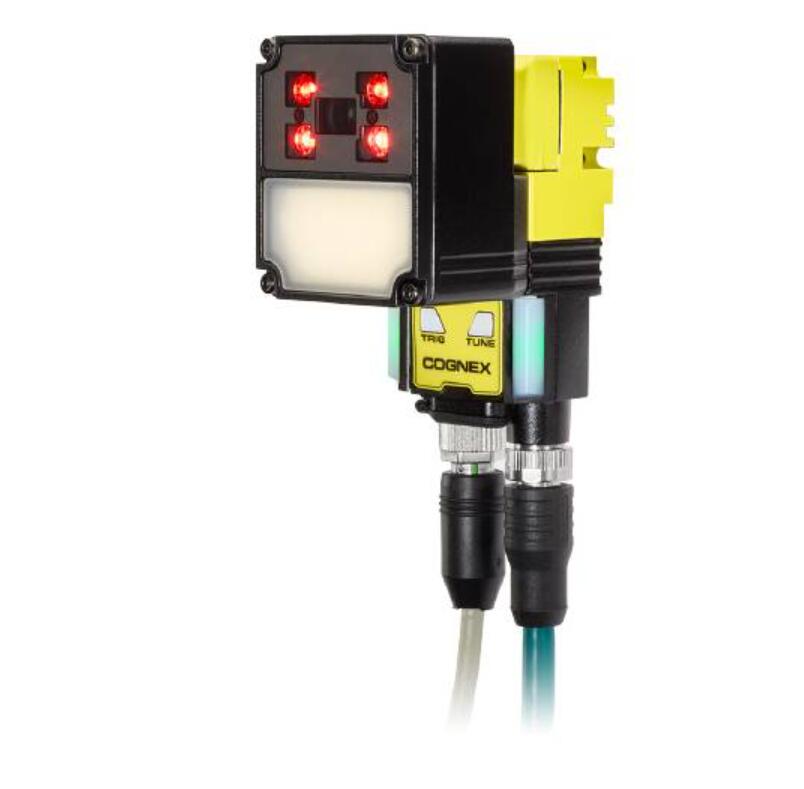

美国COGNEX康耐视视觉传感器DMR-290X-16-LM-05
Specifications
| DataMan 290 | |
|---|---|
| Image Sensor | 1/3-inch CMOS, global shutter |
| Image Sensor Properties | Diagonal size: 6.21 mm Pixel size: 3.45 μm (H) |
| Image Resolution | 1440 x 1080 pixels |
| Lens Options | 6.2 mm or 16 mm High Speed Liquid Lens |
| Electronic Shutter Speed | Minimum exposure: 43 μs Maximum exposure: 200 ms (with external illumination) |
| Acquisition | Up to 45 Hz |
| Lighting | Multi-Purpose Integrated Light: 4 LED lights (red), and 1 Diffused light (white) for 6.2mm and 16mm lens Mini Light: 4 LED high-powered lights (red) for 6.2 mm and 16 mm lens Front cover options: polarized, half-polarized and clear. |
| Status Outputs | 5 status LEDs, audible beeper, 2 visual indicator lights |
| Discrete Inputs | 2 opto-isolated, 2 configurable |
| Discrete Outputs | 2 opto-isolated, 2 configurable |
| Power | 24 V DC +/- 10% |
| Power Consumption | ≤ 7.5 W |
| Weight | Multi-Purpose Integrated Light 6.2 mm Model: 214 g Multi-Purpose Integrated Light 16 mm Model: 234 g Mini Light 6.2 mm Model: 194 g Mini Light 16 mm Model: 169 g |
| Sensor Temperature | 0-70 °C (32-158 °F)* |
| Storage Temperature | -10-60 °C (14-140 °F) |
| Operating and Storage Humidity | <95% non-condensing |
| Shock | IEC 60068-2-27: 1000 shocks, semi-sinusoidal, 11 g, 10 ms ISTA-1A Standardized Testing - Packaged Products 150 lb or less |
| Vibration | IEC 60068-2-6: vibration test in each of the three main axis for 2 hours @ 10 Gs (10 to 500 Hz at 100m/s2 / 15 mm) FedEx Vibration Testing for packaged products 150 lbs or less |
| Environmental | Altitude: 2000 m, indoor use only, pollution degree II |
| Communications | Serial, Ethernet, USB-C, and keyboard compatibility |
| Ethernet | 10/100 BASE-T. Full duplex or half duplex. IEEE802.3 |
| RS-232 | RxD, TxD according to TIA/EIA-232-F |
| Protocols | TCP/IP, PROFINET (class B), EtherNet/IP™, SLMP, CC-Link, Modbus TCP, NTP, SFTP, FTP, MRS, (Java Scripting enabled for custom protocols) |
| RoHS Certified | Yes |
| Approvals | EU [CE], CB, NRTL, IEC 61010, Korea [KCC], TÜV, India [BIS] |
1.To comply with CSA No.61010-1/UL61010-1/IEC61010-1, use a power supply that provides Class 2 output as defined in the CEC and NEC OR has been evaluated as a Limited Power Source as defined in CAN/CSA-C22.2 No.60950-1/UL60950-1/IEC60950-1.
2. To verify sensor temperature, use the temperature readout in the Web UI. Additional cooling measures are required if the sensor temperature cannot be kept below 70 °C. Examples of such measures include mounting the reader to a heat sink, reducing ambient temperature, and ensuring there is air flow over the reader.
3. The reader should not be powered by USB-C alone.
Field of view diagrams
These values are not exact minimum and maximum working distances, which are dependent on code size. Please see the DataMan 290 Reference Manual for more information.
