日东工业过滤器盒RD44-821RC RD44-411R RD44-421R

Model		Rated voltage (V) (single phase)	Dimensions mm			Maximum air quantity (m³/min)	Maximum static pressure (Pa)	Rated power consumption (W)	Noise dB (A)	Input terminal
Model			Width	Height	Depth	Maximum air quantity (m³/min)	Maximum static pressure (Pa)	Rated power consumption (W)	Noise dB (A)	Input terminal
Light beige	Cream
RD44-411R	RD44-411RC	AC100	145	145	54	0.19/0.24	18/27	9.4/7.8	approx. 31/35	Lead wire
RD44-421R	RD44-421RC	AC200	145	145	54	0.19/0.24	18/27	9.9/8.0	approx. 31/35	Lead wire
RD44-412R	RD44-412RC	AC100	230	145	54	0.44/0.57	23/34	19/16	approx. 35/40	Lead wire
RD44-422R	RD44-422RC	AC200	230	145	54	0.44/0.57	23/34	20/16	approx. 35/40	Lead wire
RD44-413R	RD44-413RC	AC100	315	145	54	0.64/0.82	34/35	29/24	approx. 38/43	Lead wire
RD44-423R	RD44-423RC	AC200	315	145	54	0.64/0.82	34/35	30/24	approx. 38/43	Lead wire

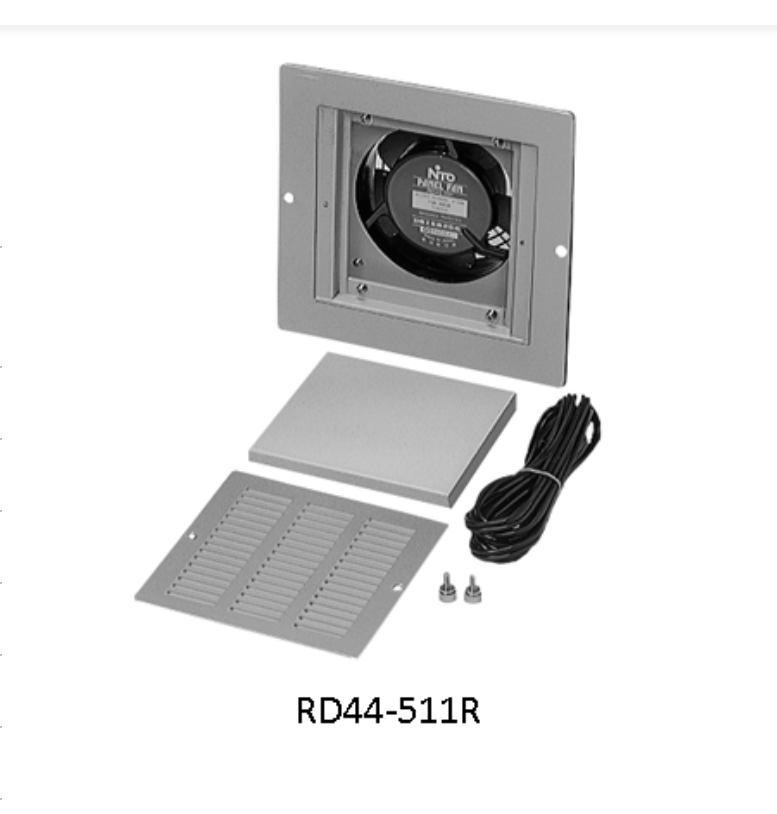

RD44-511R	RD44-511RC	AC100	155	155	54	0.30/0.38	35/48	9.6/8.2	approx. 38/43	Twin terminal
RD44-521R	RD44-521RC	AC200	155	155	54	0.30/0.38	35/48	10/8.3	approx. 38/43	Twin terminal
RD44-512R	RD44-512RC	AC100	250	155	54	0.67/0.83	37/50	20/17	approx. 41/45	Twin terminal
RD44-522R	RD44-522RC	AC200	250	155	54	0.67/0.83	37/50	20/17	approx. 41/45	Twin terminal
RD44-513R	RD44-513RC	AC100	345	155	54	1.0/1.2	36/50	29/25	approx. 42/47	Twin terminal
RD44-523R	RD44-523RC	AC200	345	155	54	1.0/1.2	36/50	30/25	approx. 42/47	Twin terminal
RD44-811R	RD44-811RC	AC100	180	180	67	0.94/1.07	74/86	15/15	approx. 44/48	Twin terminal
RD44-821R	RD44-821RC	AC200	180	180	67	0.94/1.07	74/86	15/14	approx. 44/48	Twin terminal
RD44-812R	RD44-812RC	AC100	305	180	67	1.9/2.3	76/88	31/29	approx. 48/52	Twin terminal
RD44-822R	RD44-822RC	AC200	305	180	67	1.9/2.3	76/88	30/29	approx. 48/52	Twin terminal
RD44-813R	RD44-813RC	AC100	430	180	67	3.0/3.4	79/91	46/44	approx. 50/54	Twin terminal
RD44-823R	RD44-823RC	AC200	430	180	67	3.0/3.4	79/91	45/43	approx. 50/54	Twin terminal
RD44-911R	RD44-911RCapprox. 55/59	AC100	210	230	68	2.1/2.5	149/196	24/27	approx. 55/59	Twin terminal
RD44-921R	RD44-921RC	AC200	210	230	68	2.1/2.5	149/196	26/29	approx. 55/59	Twin terminal
RD44-912R	RD44-912RC	AC100	365	230	68	4.6/5.5	160/209	48/55	approx. 59/63	Twin terminal
RD44-922R	RD44-922RC	AC200	365	230	68	4.6/5.5	160/209	51/57	approx. 59/63	Twin terminal
RD44--913R	RD44-913RC	AC100	520	230	68	7.2/8.5	159/204	70/82	approx. 60/64	Twin terminal
RD44-923R	RD44-923RC	AC200	520	230	68	7.2/8.5	159/204	76/85	approx. 60/64	Twin terminal

IP degree shows the property of the whole enclosures when installed in the enclosures of higher IP.

Note:

1. Maximum air quantity and static pressure were measured by the double chamber method.

2. Noise was measured in the anechoic chamber. The value might differ depending on the actual usage environment.

3. Models RD44-411R – 423R are not equipped with plug cords but lead wires.

4. The plug cords do not include plug sockets.

Precautions:

1. Avoid shock during transport and installation.

2. Do not install where the air flow through inlets and outlets is interfered.

3. Make sure to provide enclosures with inlets and outlets.

4. Do not use with voltages aside from the rated voltage as it might cause failures.

5. Indoor use only.

6. Avoid usage under the environment with possibility of water splash and salt content.

7. Avoid usage where vibration and shock might occur.

8. Avoid usage in atmosphere containing high temperature, high humidity, corrosive gas and flammable gas.

9. Avoid usage in places with intense dusts and oil mist.
