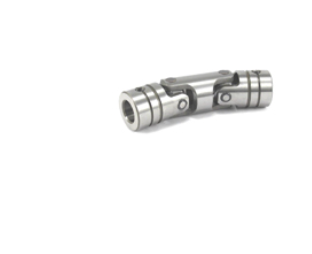

日本Miyoshi三好联轴器HJD-22
发布时间：2024-06-01
[Features]
· With total hardening treatment for increased fatigue strength.
· Additional machining cannot be performed on the hardened product.
· When shaft hole is T-shaped, please indicate new JIS key, or previous JIS key.
· With key groove processing, the strong pins and joint pins are not included.
Part Number
HJD-22-A-A
Check Price / Ship Date
Configured Specifications
| Type | Standard Type | φd(Ø) | 22 |
|---|---|---|---|
| φD(Ø) | 40 | Full Length(mm) | 150 |
| Max. Rotational Speed Range(r/min) | 301~1000 | Body Material | [Steel] SCM415 |
| Application | Standard | Max. Rotational Speed(r/min) | 470 |
| Shaft hole shape and left (B, T only JIS standards specified) | A | Shaft hole shape and right (B, T only JIS standards specified) | A |
| Maximum Transmission Capacity(N·m) | 186 | RoHS | 10 |
