日本TAKEX竹中开关GT3RSN
发布时间：2024-06-22

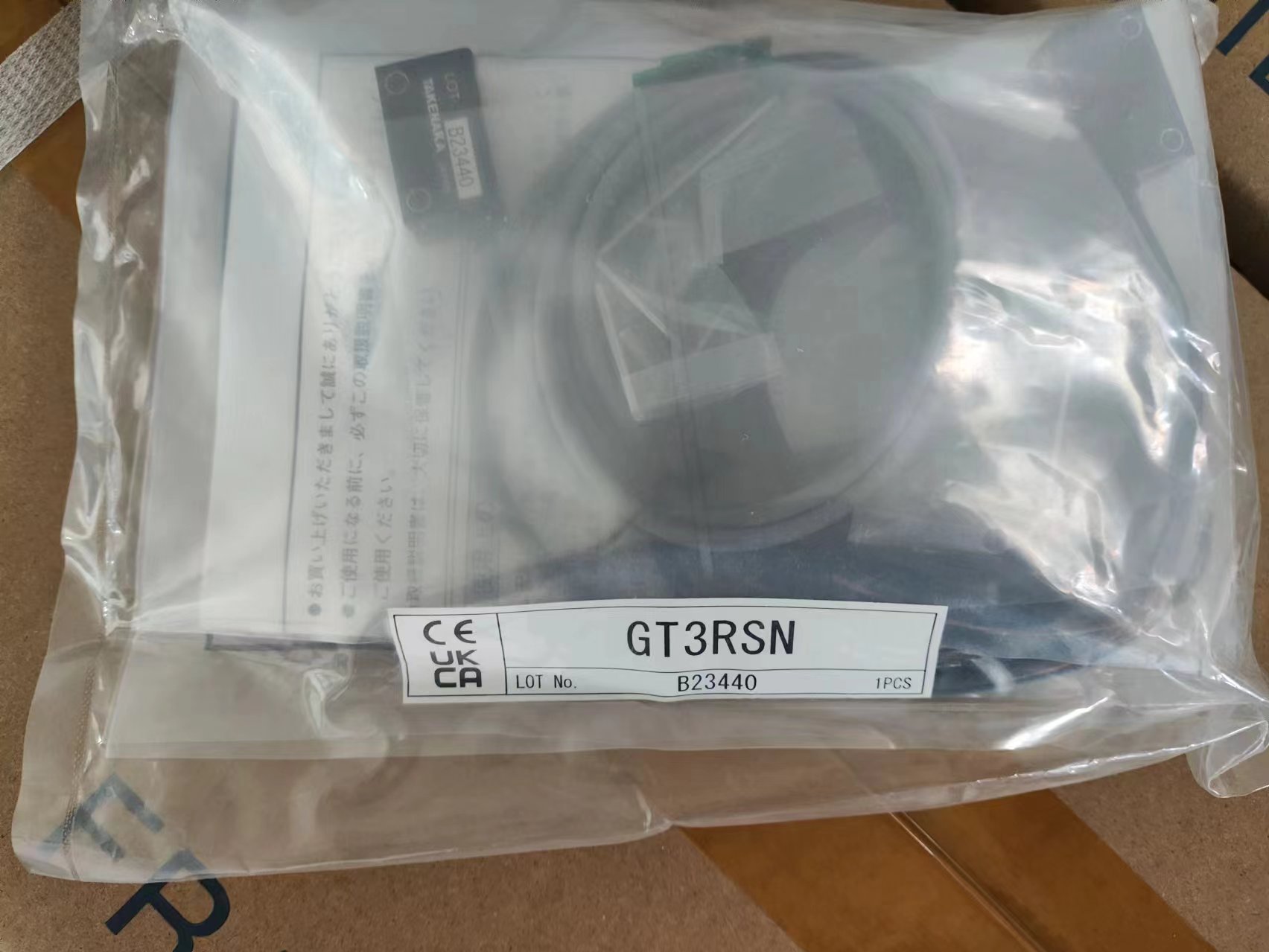

日本TAKEX竹中开关GT3RSN
GT3RSN
Rating/Performance/Specification
| Detection method | Through beam |
|---|---|
| Detecting distance | 10m |
| Detection object | dia.6mm (oe more) Opaque |
| Power supply | 12-24V DC ±10％ / Ripple 10％ or less |
| Current consumption | Transmitter: 23mA or less Receiver: 18mA or less |
| Output mode | Control output : NPN open collector output Rating: sink current 100mA (30 VDC) or less Stability output : NPN open collector output Rating: sink current 50mA (30 VDC) or less |
| Operation mode | Light-ON/Dark-ON selectable (with switch) |
| Response time | 0.35ms or less |
| Operating angle | 10°(at receiver) |
| Light source (light wavelength) | Red LED (700nm) |
| Indicator | Transmitter: Power indicator (red LED) Receiver: Operation indicator (red LED) Stability indicator (green LED) |
| Volume | SENS: Sensitivity adjusment (on receiver for through-beam type) |
| Switch | Light-ON/Dark-ON selector switch provided |
| Short circuit protection | Provided (for control output only) |
| Material | Case : Polyarylate Lens : Polyarylate |
| Connection | Cable type (outer diameter: 3mm; length 2m) Transmitter: 0.15mm2 x 2 cores (gray) Receiver: 0.15mm2 x 3 cores (black) |
| Weight | Approx. 50g (transmitter/receiver) |
| Accessories | Mounting bracket, operation manual provided |
Environmental Specification
| Ambient light | 5,000 lx or less |
|---|---|
| Ambient temperature | -25 - +55 ℃ (non-freezing) |
| Ambient humidity | 35-85%RH (non-condensing) |
| Protective structure | IP67 |
| Vibration | 10-55 Hz / 1.5 mm double amplitude / 2 hours each in 3 direction |
| Shock | 500 m/s2 / 3 times each in 3 directions |
| Dielectric strength | 1,000 VAC for 1 minute |
| Insulation resistance | 500 VDC, 20 MΩ or higher |
