日本Magnescale索尼转换器MT20-05
发布时间:2024-07-22
日本Magnescale索尼转换器MT20-05
Digital Gauge
MT Series
Product TOP

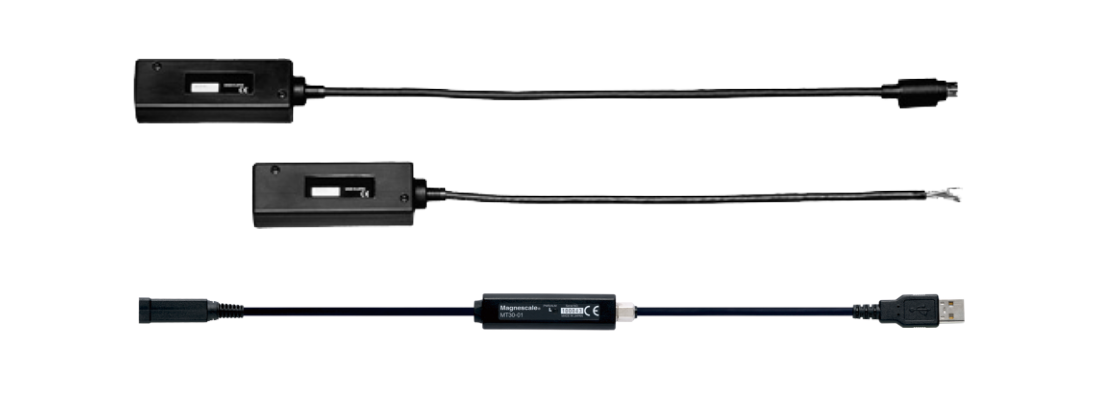

Interpolators for DT12/32/512 Series
MT13: For connection to LT30 and MG80
MT14: Unterminated cable A/B-quadrature output by line driver [EIA-422(RS-422) compliance]
MT20: For connection to MF10
MT30: For USB output
Maximum resolution: :1μm(-01)、5μm(-05)、10μm(-10)(MT13/14 only)
Specifications
Specifications Magnescale reserves the right to change product specifications without prior notice.
Model MT13-01 MT13-05 MT13-10 MT14-01 MT14-05 MT14-10 Compatible measuring unit DT512, DT12/DT32 Maximum response speed 100 m/min Maximum resolution 1μm 5μm 10μm 1μm 5μm 10μm Power voltage DC5V±4% Power consumption 1.2 W (when output load of 120Ω is connected) Output format Voltage differential line driver Operating temperature/humidity 0 to +50 °C (non condensing) Storage temperature/humidity -10 to + 60℃ (20 to 90 %RH) Mass Approx. 90g Specification Magnescale reserves the right to change product specifications without prior notice.
Model MT20-01 MT20-05 Compatible measuring unit DT512 DT12/DT32 Maximum response speed 150 m/min Maximum resolution 1μm 5μm Power voltage DC+10 to +30V Power consumption 1.2 W or less Operating temperature and humidity range 0 to +50 °C (No condensation) Storage temperature and humidity range -10 to + 60 °C (90%RH or less) Mass Approx. 50 g Specifications Magnescale reserves the right to change product specifications without prior notice.
Model MT30-01 MT30-05 Compatible measuring unit DT512 DT12/DT32 Maximum respponse speed 150 m/min Maximum resolution 1μm 5μm Power voltage DC5 V ±5% Power consumption 120 mA Max. Operating temperature and humidity range 0 to +50°C (No condensation) Storage temperature and humidity range -10 to +60°C (90%RH or less) Mass Approx. 50 g Dimensions
Product name 2D 3D MT13 – – MT14 – – MT20 Download Download MT30 – – Instruction manual
Product name Japanese English Deutsch MT13 / MT14 Download Download Download MT20 Download Download – MT30 Download Download – *Please contact us if you cannot download the file.
Accessory
MT13
Extension cable (Output for MT13)
CE08-1,3,5,10,15 Extension cable for LT Series or MG Series (1, 3, 5, 10, 15m) CK-T12,13,14,15,16 Flex-resistant extension cable for LT series / MG series (1, 3, 5, 10, 15 m) CE29-003,01,03,05,10 Extension cable for LY series counter (0.3, 1, 3, 5, 10 m) MT30
Extension cable
CE38-01,02,04 USB Extension for MT30 (1, 2, 4 m)
