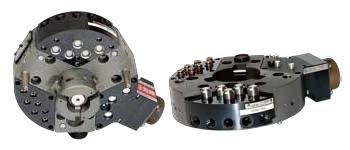

NITTAOMEGA IV
Features
3-module system
High rigid body
Easy and secure coupling/uncoupling with cam lock system
Directly mounted solenoid valve as option
LED equipped as standard
Module compatible with former NITTAOMEGA Series
Applications
Gun changer for spot welding
Converting from spot welding to material handling
Assembly material handling tool changer
Changing stripping hand for press - formed works
Attachment change

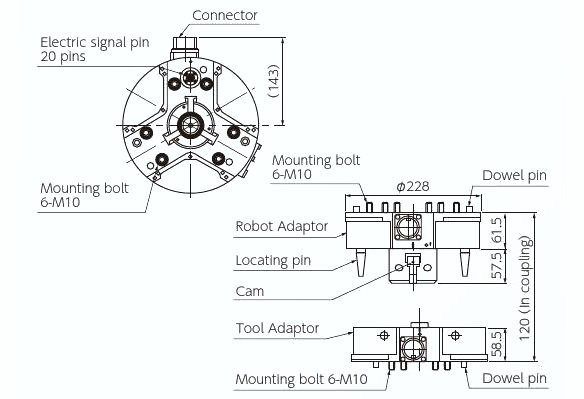

External dimensions
Specification
| Payload | 200kg | |
|---|---|---|
| Allowable moment | 1471Nm | |
| Allowable torque | 1471Nm | |
| O.D. | φ228mm | |
| Thickness when coupled | 120mm | |
| Main body material | Aluminum alloy | |
| Position repeatability | ±0.025mm | |
| Operational air pressure | 0.39~0.85MPa | |
| Main body weight | Robot side | 4.2kg |
| Tool side | 2.8kg | |
| Electrical signals | Current | 3A |
| No. of signals | None or 20 signals | |
| Output signals | Chuck signal | |
| Unchuck signal | ||
| Face signal | ||
| Environment | Ambient temperature | 0~60℃ (No freezing) |
| Ambient humidity | 0~95%RH (No condensation) | |
General catalogStandard model
| BR20-0PS10 Robot adapter (NPN spec) BT20-0PC00 Tool adapter | PDF Data | 2D CAD Data (DXF) | 3D CAD Data (STEP) | NPN spec wiring diagram |
|---|---|---|---|---|
| BR20-0PS1G Robot adapter (PNP spec) BT20-0PC00 Tool adapter | PNP spec wiring diagram |
*Please enter your information for downloading CAD data.
*The external dimensions are the same for both NPN and PNP spec.
*Mounting plates are also available.
